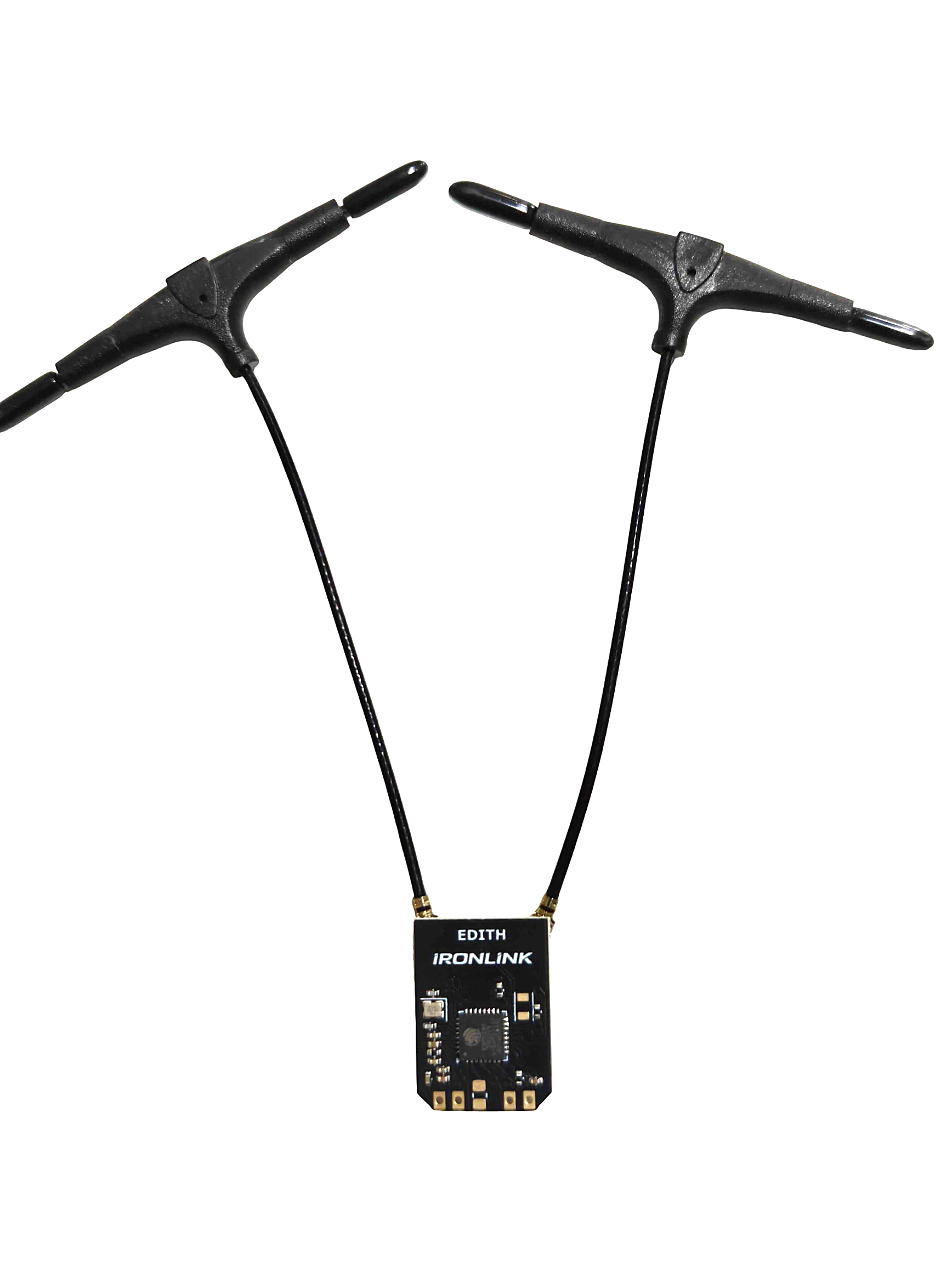

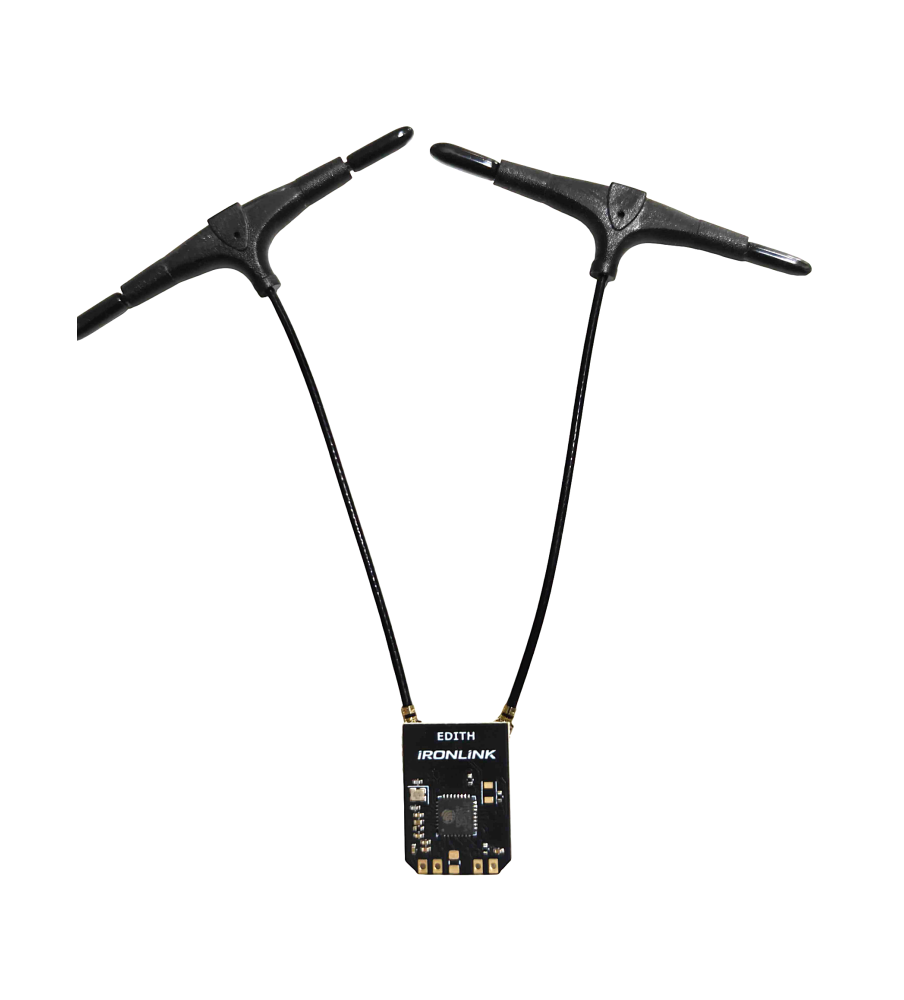

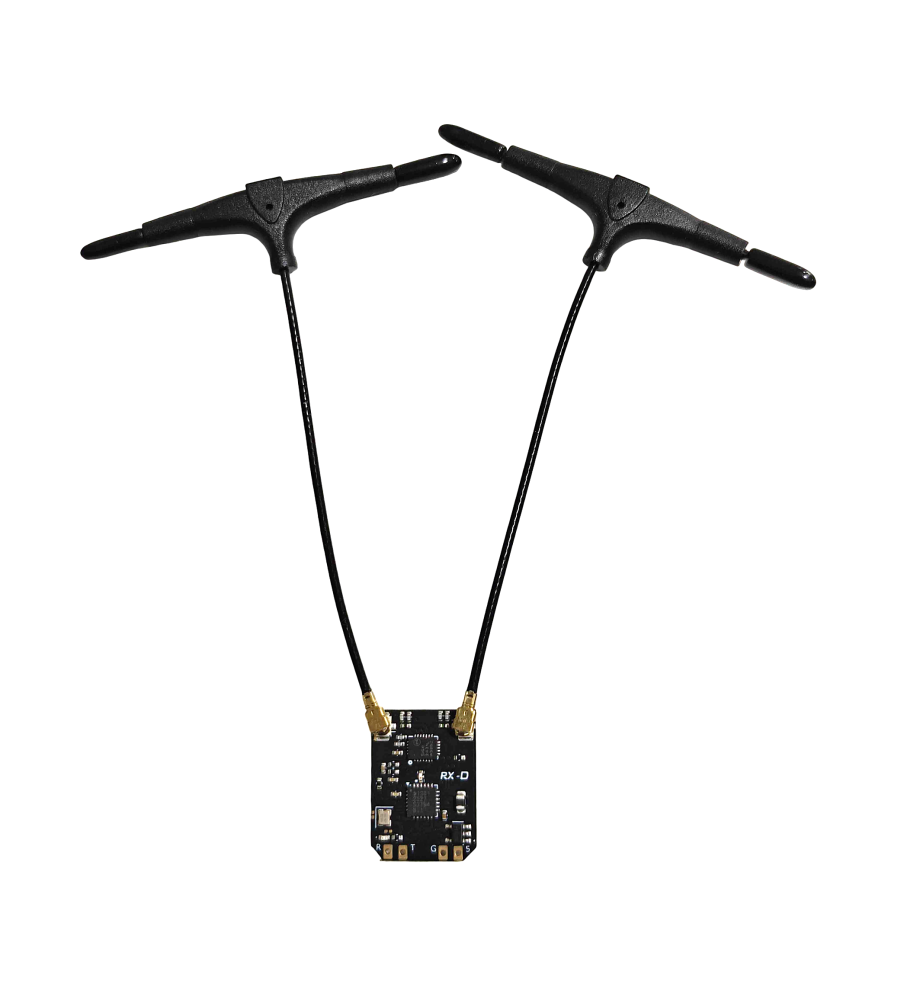

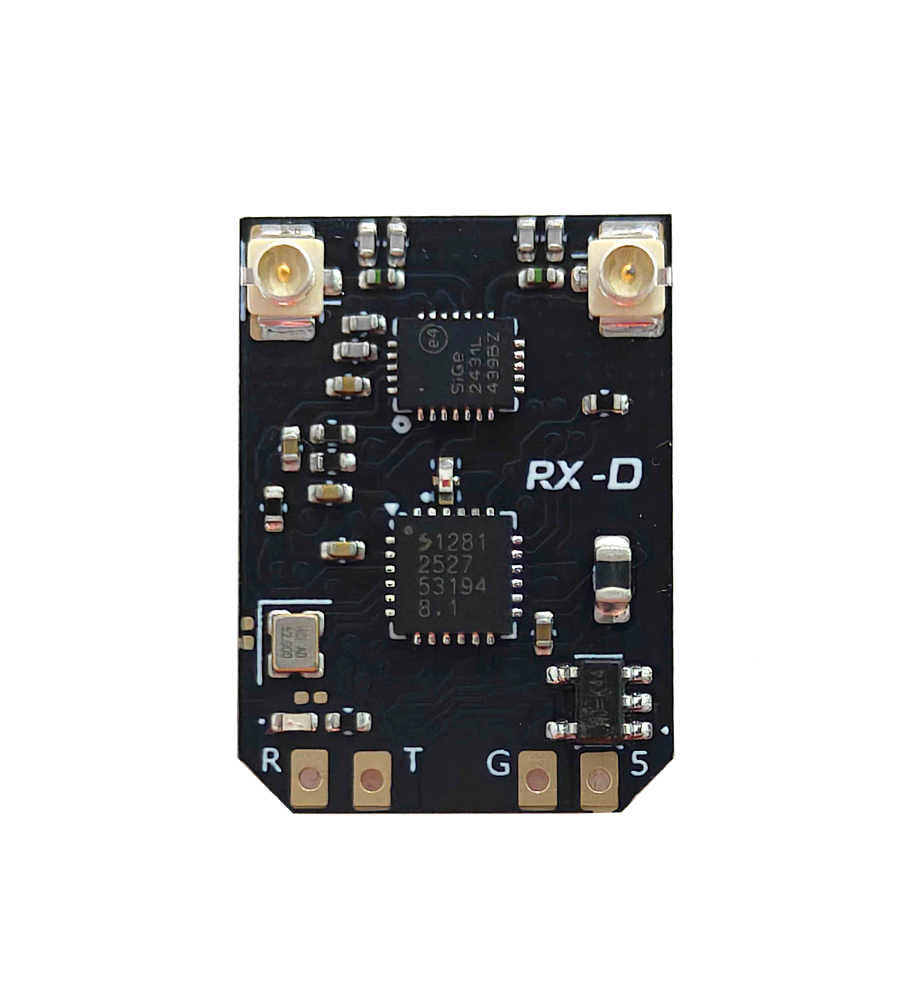

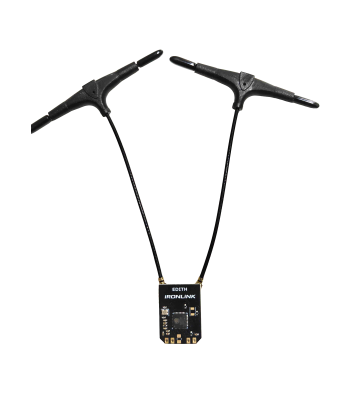

IronLink RX-D 2.4GHz Diversity Receiver

The IronLink RX-D is a high-performance ExpressLRS 2.4GHz diversity receiver engineered to provide dependable long-range control, ultra-low latency, and exceptional link stability for demanding FPV and UAV applications.

At its core, the receiver utilizes an ESP8285 microcontroller paired with a 2.4GHz RF transceiver, delivering the fast packet rates, robust telemetry, and responsive control performance that ExpressLRS is known for.

Featuring true antenna diversity, the RX-D continuously monitors signal quality and intelligently selects the antenna offering the best reception, significantly improving resistance to signal fading, multipath interference, and challenging flight environments.

An integrated 2.4GHz front-end amplifier stage enhances receiver sensitivity and supports telemetry transmission power up to 100 mW, helping maintain a strong and reliable return link even at extended distances.

Built-in Wi-Fi connectivity allows seamless over-the-air firmware updates and configuration through the ExpressLRS WebUI, eliminating the need to disconnect or remove the receiver from the aircraft.

Despite its advanced capabilities, the IronLink RX-D maintains a lightweight and compact footprint, making it suitable for everything from racing quads and long-range platforms to fixed-wing aircraft and professional unmanned systems.

Key Features

• ExpressLRS 2.4GHz protocol support
• True antenna diversity with intelligent antenna selection
• ESP8285 high-performance microcontroller
• High-sensitivity RF front-end for improved link robustness
• Up to 100 mW telemetry output power
• Integrated Wi-Fi for wireless firmware updates and configuration
• Ultra-low latency control with high packet rate support
• Compact and lightweight design for space-constrained builds
• Optimized for FPV, long-range, fixed-wing, and professional UAV applications

For detailed specification and flashing guide. Please visit: https://docs.edsystems.in/
