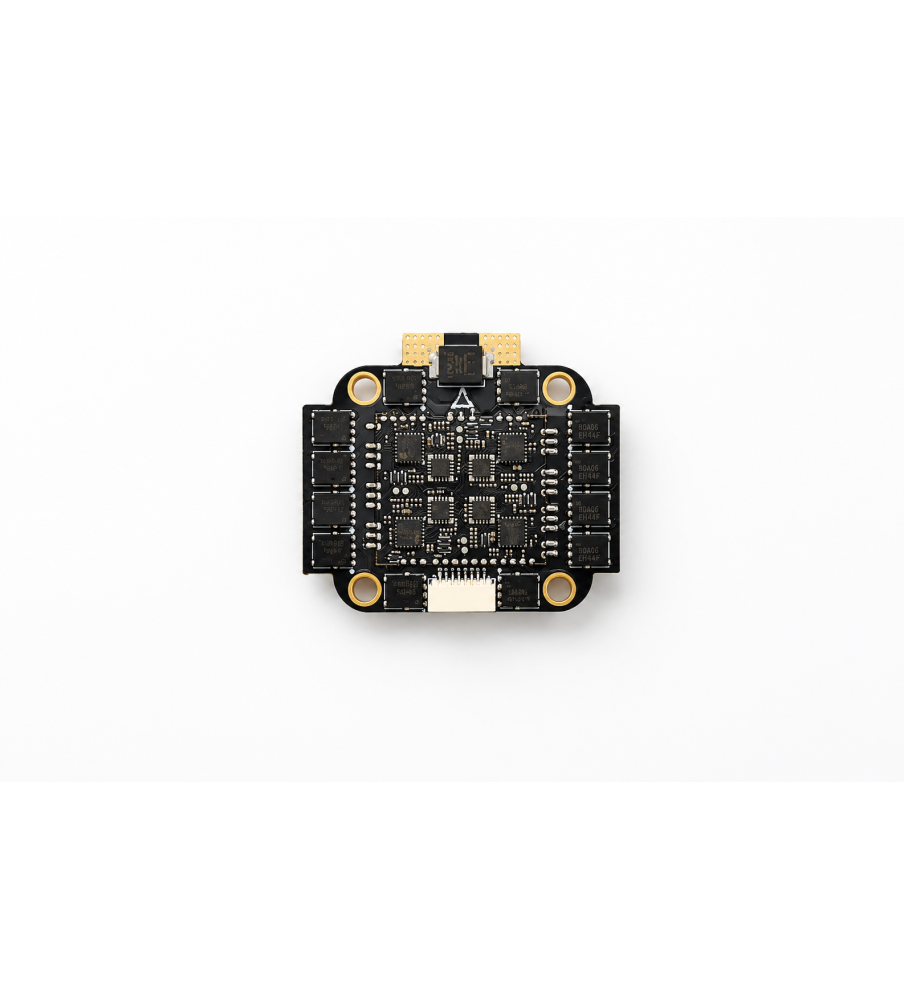

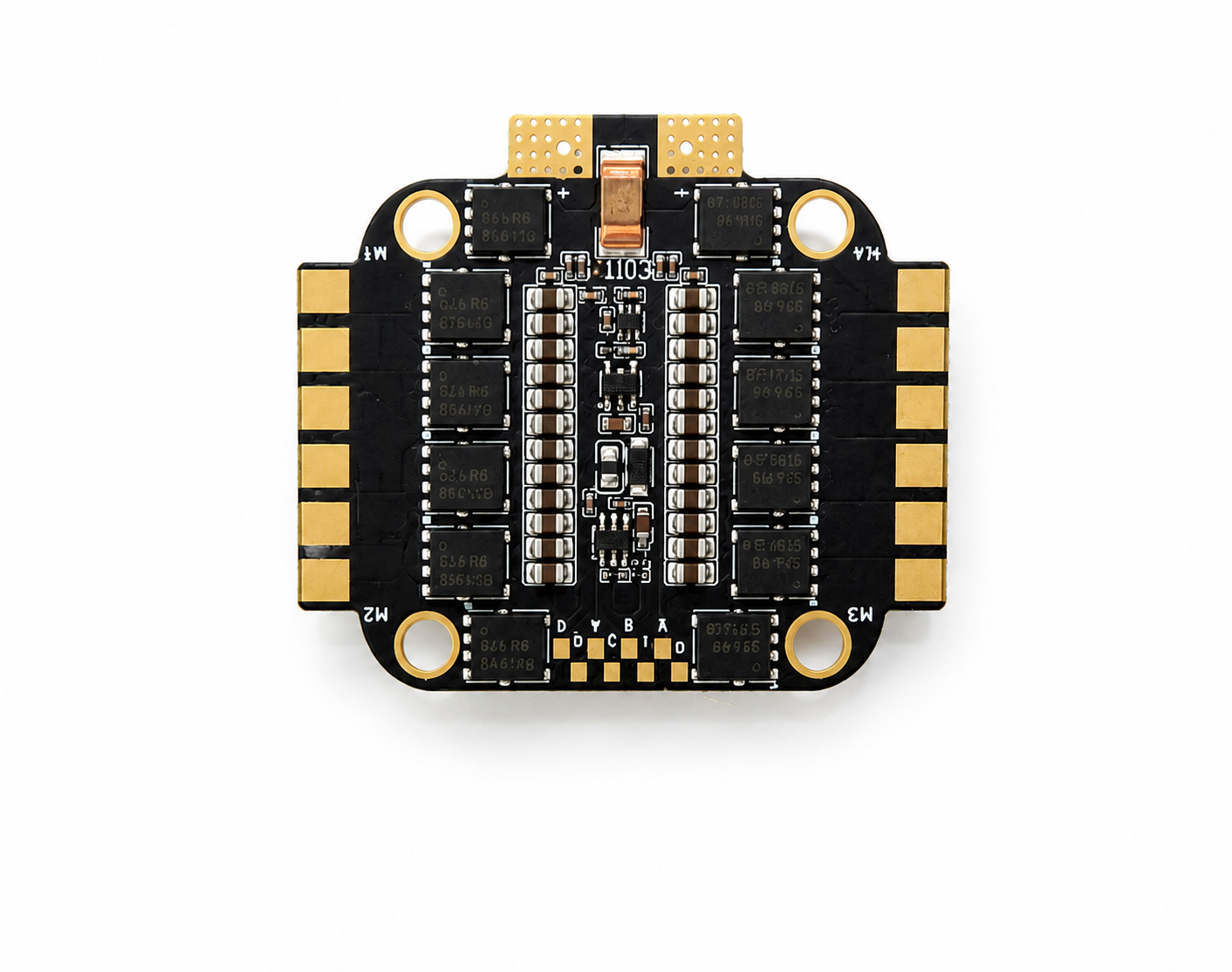

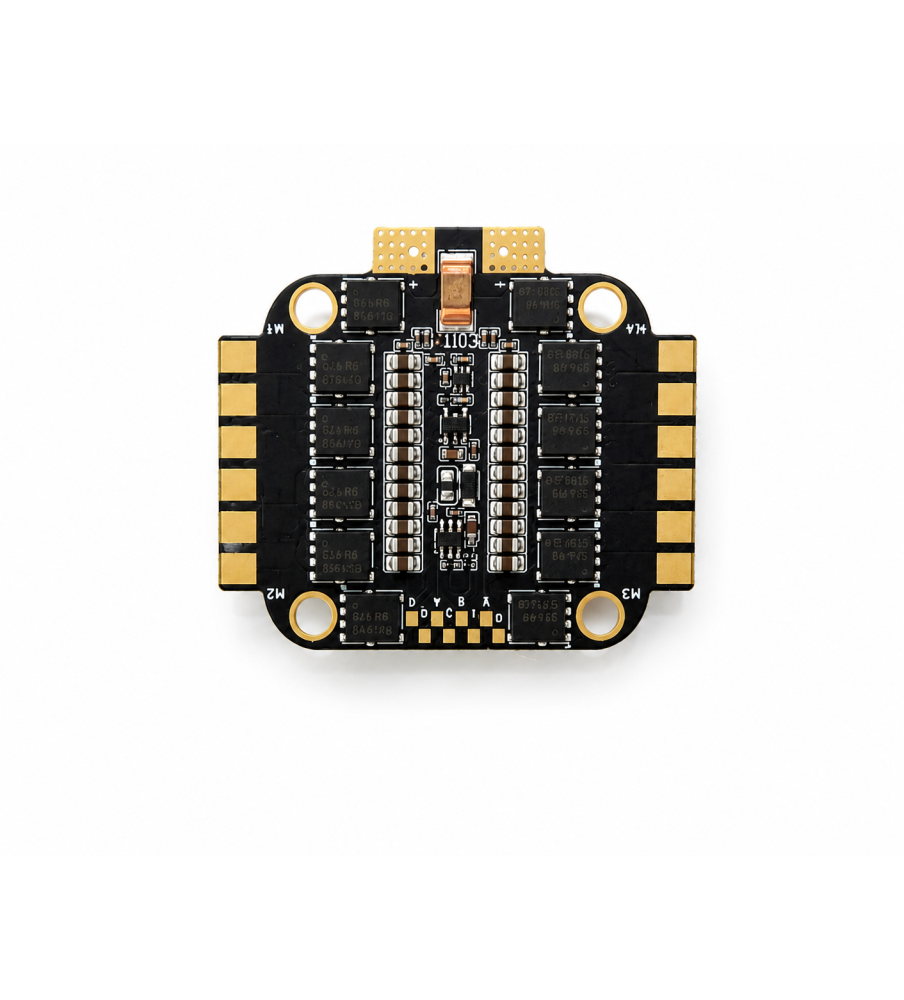

EDITHFPV IronFlame 45A 4-in-1 BLHeli_S ESC

The EDITHFPV IronFlame 45A 4-in-1 ESC is engineered to deliver smooth, responsive, and reliable power for modern FPV drones. Designed for racing, freestyle, cinematic, and long-range applications, IronFlame combines efficient power delivery with the proven reliability of BLHeli_S firmware.

Capable of supporting 2S to 6S LiPo batteries with a 45A continuous current rating, IronFlame provides the performance needed for today's demanding FPV builds while maintaining a compact 30.5 × 30.5 mm form factor.

Whether you're building your first quad or upgrading an existing platform, IronFlame is built to keep your motors performing at their best.

---

Key Features

• 45A Continuous Current
• 4-in-1 Electronic Speed Controller
• BLHeli_S (8-bit) Firmware
• Supports 2S–6S LiPo Batteries
• Smooth and responsive motor control
• Optimized for racing, freestyle, cinematic, and long-range drones
• Compact 30.5 × 30.5 mm mounting pattern
• High-efficiency MOSFET design
• Designed for reliable and consistent performance
• For above 30amps per channel, ensure the ESC has enough airflow over it.

---

Applications

• FPV Racing
• Freestyle Quads
• Cinematic FPV
• Long-Range Builds
• Educational & Research Platforms
• Custom UAV Projects

---

Specifications

Specification	Value
Product	IronFlame 4-in-1 ESC
Continuous Current	45A
Firmware	BLHeli_S (8-bit)
Battery Support	2S–6S LiPo
Configuration	4-in-1 ESC
Mounting Pattern	30.5 × 30.5 mm

---

Package Includes

• 1 × EDITH IronFlame 45A 4-in-1 ESC
• 1 × FC-to-ESC Connection Cable
• Mounting Hardware
